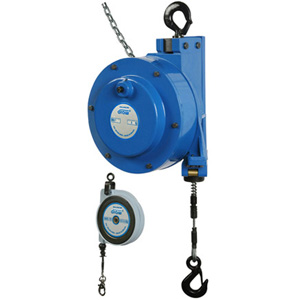

DRAW Springs, also known as mechanical or retractable balancers allow companies to reduce production
costs increase productivity improve ergonomics at the workstation, and minimize worker strain.
DRAW Balancers are manufactured with first quality materials providing long life.
Spare parts are always kept at your disposal so that your balancers will never be stationary for long
periods.
DRAW
Balancers keep the tools in balance for action, minimizing movements needed to bring the tools from
"rest" positions to "work" position. They decongestion the work area..
| Model | Capacity (Kg) |
| P05 | From 0,0 to 0,6 Kg |
| P1 | From 0,0 to 1 Kg |
| P2 | From 0,5 to 2 Kg |
| P3 | From 1 to 3 Kg |
| P5 | From 2 to 5 Kg |
| P8 | From 4 to 8 Kg |
| P10 | From 7 to 10 Kg |
| P12 | From 9 to 12 Kg |
| P15 | From 11 to 18 Kg |
| P20 | From 17 to 23 Kg |
| P25 | From 22 to 28 Kg |
| P30 | From 27 to 34 Kg |
| P35 | From 32 to 38 Kg |
| P40 | From 36 to 43 Kg |
| P45 | From 42 to 49 Kg |
| P50 | From 47 to 54 Kg |
| P55 | From 52 to 58 Kg |
| P60 | From 56 to 65 Kg |
| P70 | From 64 to 76 Kg |
| P80 | From 72 to 86 Kg |
| P90 | From 82 to 96 Kg |
| P100 | From 94 to 108 Kg |
| P110 | From 104 to 116 Kg |
| P120 | From 112 to 132 Kg |
To load: Turn counter-clockwise the wheel to the left.
To download: Press the spring ring to the right.
To load: Turn clockwise the spindle to the right, with aid of a standard fixed key.
To download: Press the spring ring to the left
To load: Turn clockwise the spindle using the hex nut.
To download: Turn counter-clockwise the same spindle.
By using the handle, you can adjust and set the cable length and let it out of the balancer t o have
the tool within your reach.
These models have safety systems (Malta’s Cross and Reel Lock)
In case of breakage, they lock the
system holding the load in position. They also have a brake system, which allows a slower control of
the load return, braking simultaneously the reel in case of breakage.
